Hydraulic Servo

MAX1250X
https://tailiftgroup.demo6.gtmc.app/web/image/product.template/31/image_1920?unique=fd9e790

X Axis Traverse Speed 80 m/min
Y Axis Traverse Speed 70 m/min
Working Tables Size Brush

 Catalog

This combination does not exist.


Features


HIGH PERFORMANCE

FLEXIBILITY IN MULTI-TOOLS

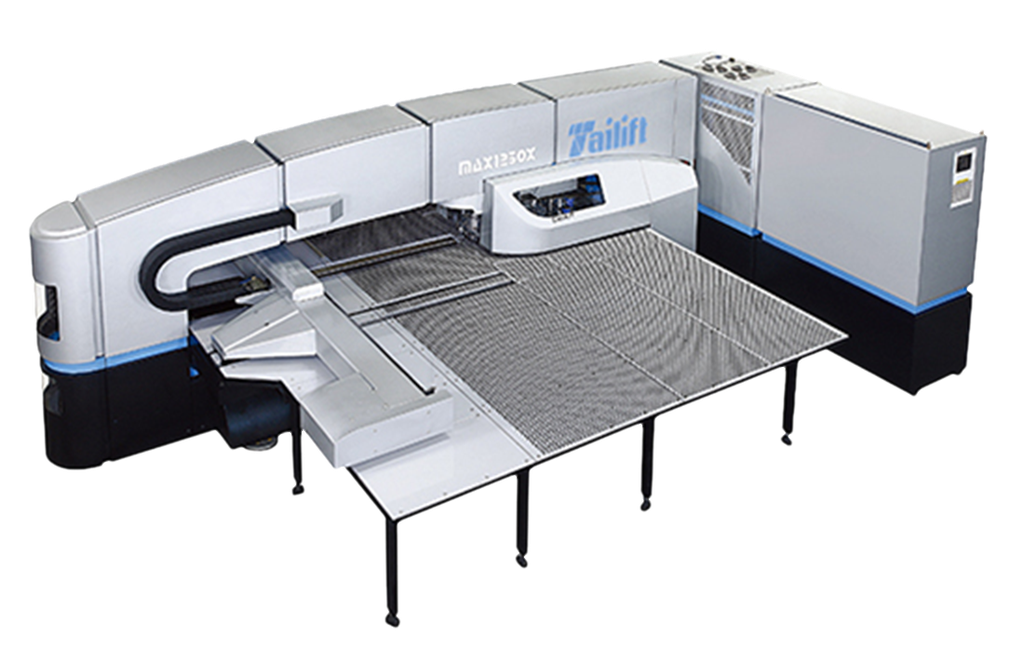

MAX Series Punch Press Machine is the newly developed Multi Index Tools Turret Punch Press equipped with advanced Servo Hydraulic System, introduced by Tailift’s professional R&D and production teams who have been dedicated to machineries for decades. Our MAX Series machines provides the fastest, flexible and reliable punch press satisfying your expectation of fast and precise sheet metal works.

Advanced Servo Hydraulic System(ASHS inside)

  • Advanced German made Schneider Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
  • To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
  • Uniquely designed Machine structure ensures less preventive maintenance.

Complex Multi-Tools Auto Index Technology (CMAIT)

  • Complex Multi-Tools Auto Index Technology (CMAIT)
  • Synchronized dual servo motors for controlling the auto index functions.
  • 4 D Auto Index Stations for Multi Tools, either 3 B or 8 A.
  • Capable of indexing each individual tool within the 3B and 8A Multi Tool set.
  • 24 various size stations including 4 Auto Index stations Multi Tools.
    Therefore, a total of 24 to 52 tools can be employed.
  • Capable of running wheel, marking, grooving and forming Tooling.

Specifications

  • Item
    		 Unit
    		 MAX1250X
    Punching Capacity
    		 Ton 20
    X axis Travel Length
    		mm2490±10
    Y axis Travel Length
    		mm1250±10
    Max Sheet Size
    		mm1250x4980
    Max Sheet Thickness
    		mm6.35
    Max.Sheet Weight
    		kg110
    X Axis Traverse Speed
    		m/min
    		80
    Y Axis Traverse Speed
    		m/min
    		70
    Max Traverse Speed
    		m/min
    		105
    Punching Speed at 25mm pitch
    ​⁣​hist/min

    360
    25mm Between Holes
    Nibbling Speed (stroke length 4mm, pitch 1mm)
    		hits/min.
    		600
    Tools Type

    		Thick turret
    Max Punching Diameter
    		mm88.9
    Number of Tool Stations

    		34
    Numer of Auto Index Stations

    		4/(DType)
    Turret Rotating Speed
    		rpm
    		40
    Auto Index Rotating Speed
    		rpm
    		50
    Ram Stroke Distance
    		mm0-31
    Working Tables Size

    		Brush
    Number of Sheet Clamps

    		3
    Power Supply
    		KVA
    		25
    Air Supply
    		NL/min
    		250
    Oil Tank Volume
    		L350
    Air Pressure
    		bar
    		5
    Machine Size
    		mm
    		5420x5085x2080
    Net Weight (apporx)
    		kg
    		14000
    Size of Control Cabinet
    		mm
    		1520x700x2080
    CNC Controller

    		FANUC Oi-PF
    Number of Controllable Axis

    		5+1
    Memory
    		KB
    		512
    Serial Interface

    		USB/PCMCIA/RS232C/RJ45
    Punching Accuracy
    		mm±0.1
  • Specifications are subjects to change without prior notice.
    Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
    Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

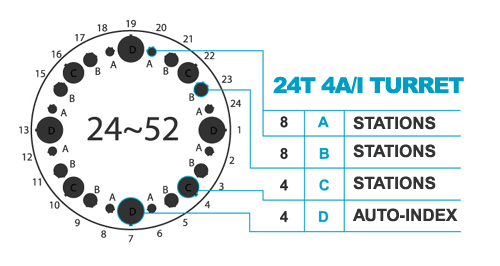

Station Arrangement


A type 1/2" MAX diameter 12.75mm
 24 ( 8 accept shaped tools )
B type 1-1/4" MAX diameter 31.75mm
 8 ( 8 accept shaped tools )
C type 2" MAX diameter 50.80mm
 4 ( 4 accept shaped tools )
D type 3-1/2" MAX diameter 88.90mm
 4 AUTO. INDEX
E type 4-1/2" MAX diameter 114.30mm
 2 ( 2 accept shaped tools )


Layout



Specifications

Select Types Hydraulic Servo
Select Types Hydraulic Servo
Tonnage 20
Space Occupied 1250 x 4980
Applicable Industry Transportation | Stage Smart Equipment | Technology Industry | Public Facilities | Advertising Signs | Vending Machine | Medical Equipment | Distribution Box | Machine Tool | Sheet Metal Outsource / Machining | Elevator manufacturing / Accessories
