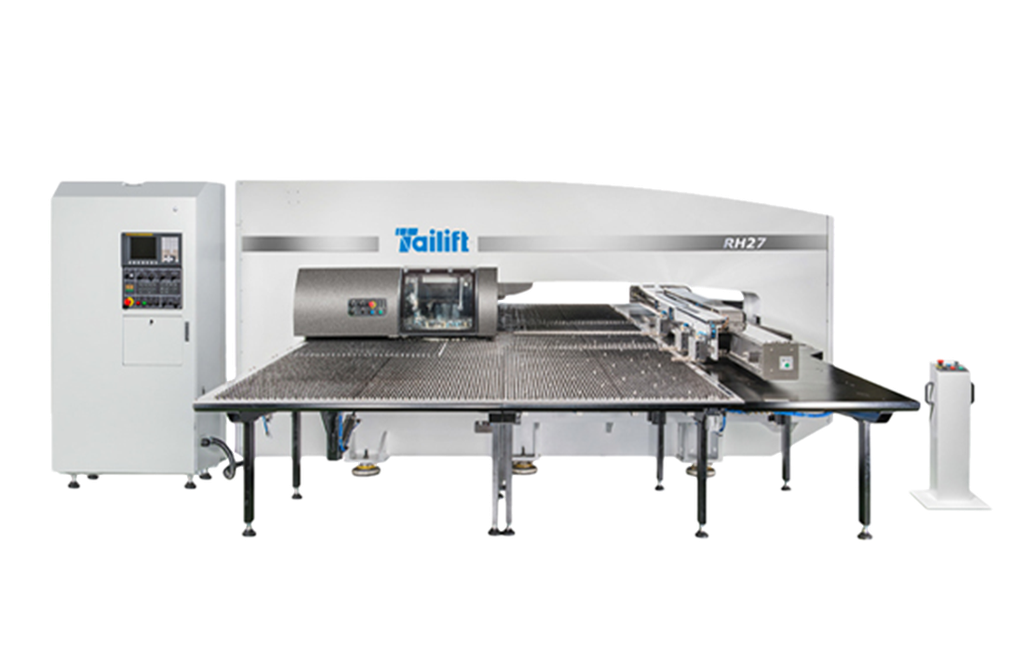

Hydraulic Servo
RH27Plus
X Axis Traverse Speed 80 m/min
Y Axis Traverse Speed 70 m/min
Working Tables Size Brush+ Ball
Features
RH27 Turret Punch Press machine is new generation Servo Hydraulic series, inherited the features of high reliability and durability from HP series. With Germany H+L Advanced Servo-Hydraulic System, its Robust Punching performance is capable for punching big and thick sheets. Multi-functional for PUNCHING, FORMING, AND TAPPING (option) significantly reduces stand-by time and increases material utilization. Furthermore, energy saving, high accuracy and high integrated assembly construction, effectively reduces maintenance cost.
Energy Saving System
Differential circuit system with High/Low voltage, minimize hydraulic unit, less than 30% hydraulic oil comparable typical hydraulic system. The compact size can reduce energy consumption and maintenance cost and save consumption cost.
Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions to enable the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.
ROLLING SHEAR
ROLLING PINCHER
ROLLING OFFECT
ROLLING RIB
Specifications
Item Unit RH27 PLUS Punching Capacity Ton 30 X axis Travel Length mm 2490±10 Y axis Travel Length mm 1525±10 Max Sheet Size mm 1525×4980 Max Sheet Thickness mm 6.35 Max.Sheet Weight kg 110 X Axis Traverse Speed m/min 80 Y Axis Traverse Speed m/min 70 Max Traverse Speed m/min 105 Punching Speed at 25mm pitch hits/min 280 Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 600 Tool Type Thick turret Max Punching Diameter mm 88.9 Number of Tool Stations 34 Numer of Auto Index Stations pcs(type) 2(B) Turret Rotating Speed rpm 30 Auto Index Rotating Speed rpm 50 Ram Stroke Distance mm 0-31 Working Table Brush+Ball Number of Sheet Clamps pcs 3 Power Supply KVA 28 Air Supply NL/min 5 Air Pressure bar 5 Oil Tank Capacity Litre 250 Size of Control Cabinet mm 1100*535*1980 Number of Controllable Axis Axis 4+1 RAM Memory KB 512 Serial Interface RS232 / RJ45 / PCMCIA Punching Precision mm ±0.1
- Specifications are subjects to change without prior notice.
Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Accessories
| Standard | Optional |
| Supporting Ball Set | CAD/CAM Software |
| Anti-vibration Foot Mounts | Tapping System |
| Sheet distortion sensor | Large Brush on Table |
| Heavy-duty Clamp | Block Lowering Device |
| Die holder brush | |
| Repositioning Cylinder |

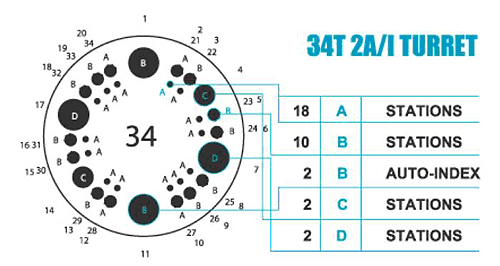

Station Arrangement
Turret with 34 Stations
- The turret is transmitted through the worm and worm gear mechanism.
Two shafts are synchronously transmitted via a connecting rod for safe and dependable positioning. - The turret is designed with 34 stations, and accommodates various tool sizes from 1/2” to 3-1/4”. Changing tool size is available upon customer request.
- Each station can be fitted with various brand tools, such as Mate and Wilson.
- Designed with two circular track stations.
- Replaceable bushing easy to maintain.
| Atype (1/2") MAX diameter 12.75mm |
18 (14 accept shaped tools) |
| Btype (1-1/4") MAX diameter 31.75mm |
10 (10 accept shaped tools) |
| Btype (1-1/4") MAX diameter 31.75mm |
2 AUTO. INDEX |
| Ctype (3-1/2") MAX diameter 50.8mm |
2 (2 accept shaped tools) |
| Dtype (1-1/4") MAX diameter 88.9mm |
2 (2 accept shaped tools) |

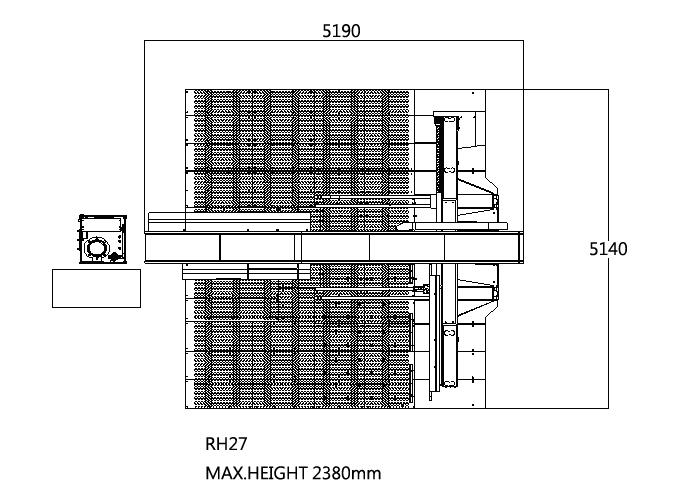

Layout
Specifications
| Select Types | Hydraulic Servo |
| Select Types | Hydraulic Servo |
| Tonnage | 30 |
| Space Occupied | 1525 x 4980 |
| Applicable Industry | Transportation | Stage Smart Equipment | Technology Industry | Public Facilities | Advertising Signs | Vending Machine | Medical Equipment | Distribution Box | Machine Tool | Sheet Metal Outsource / Machining | Elevator manufacturing / Accessories |
