Features
- Each time is 0.2 seconds high speed, low power consumption, simple automatic operation.
- Applicable to the wide range of materials,compatible with various loading and unloading methods.
- Tailift wisdom of exclusive software, easy to operate smoothly.
- Cloud management and maintenance, real-time monitoring of operation.
- The daily maintenance is simple and low cost.
- Without making molds, free to design complex shapes and production at any time.
The 13 axes move simultaneously, the bending movement is smooth, and the operation is highly coordinated.
Specifications
Item Unit TBC2500 Minimum accuracy mm 0.01 Fastest bending speed sec 0.5sec秒/each刀 Maximum bending width mm 2000 Maximum bending size mm 2000x1500mm Bending height mm 170mm Rated voltage V 380V Peak power KW 23KW Average power KW 2.2KW Noise dB 40dB Dimensions(LxWxH) cm 400 x 255 x 310 Total weight tons 18 Operating environment windows 7 up ad Maximum bending thickness mm MS 1.5mm Minimum material thickness mm 0.35mm Minimum inner size of four sides forming mm 110mm x 280mm Minimum inner size of bilateral forming mm 110mm Number of axes 13
Floor Plan
SAMPLE
Specifications

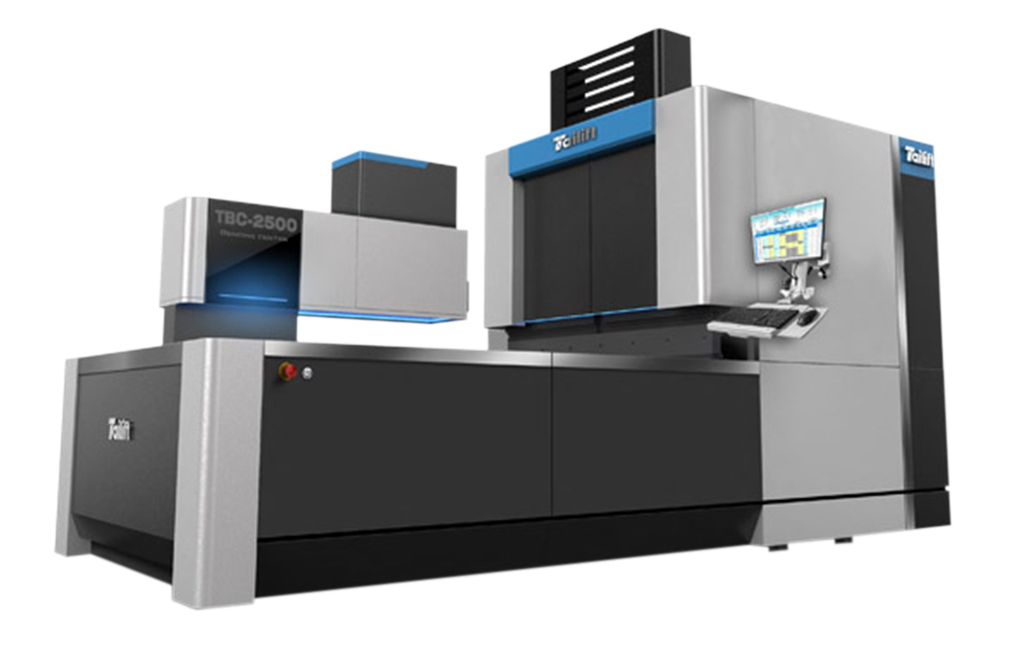

| Select Types | Automatic Multilateral Bending Machine |
| Applicable Industry | Transportation | Stage Smart Equipment | Technology Industry | Public Facilities | Advertising Signs | Vending Machine | Medical Equipment | Distribution Box |
FAQ
Q1 Does an automated production line have to be implemented for the entire factory and entire line all at once?
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
Q2 What types of equipment can Tailift sheet metal automation integrate with?
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
Q3 What else does an automated production line include besides equipment?
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Q4 Which factories are best suited to evaluate automation first?
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Q5 How are automated production lines related to Industry 4.0?
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
Still unsure if an automated production line is right for you?
Tell us about your current equipment setup, bottleneck processes, and production capacity goals, and Tailift will help you evaluate the most suitable sheet metal automation solution!
