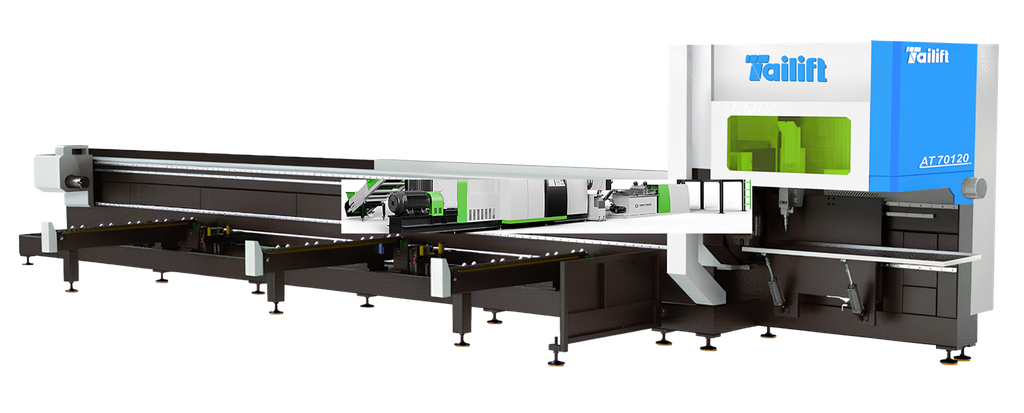

AT70120 Fiber Laser Tube Cutter Machine提案
Machining range(X*Y): 2000*4000 , Travel(X*Y*Z): 2050*4050*200
An expert-grade, high-speed laser tube cutting solution designed for superior performance.
此產品不可使用。
High-Intensity Cutting Performance
With advanced automation, 7-axis simultaneous motion, ultra-fast rotation and movement, and high-precision positioning, the machine delivers consistent, high-intensity cutting performance.
7-Axis simultaneous motion control
Ultra-fast rotation and movement
Consistent, high-intensity processing
SAMPLE
Cutting of irregularly shaped tubes
Beveling and grooving
Square tube splicing and cutting
Perforation of complex structures
Core Advantages
Fast tube exchange for continuous cutting efficiency
High-precision dual pneumatic chucks for accurate positioning
Compatible with various tube shapes and thicknesses
Ensures stable, high-efficiency operation over extended periods
Specifications
| Item |
AT70120 |
| Tube Machining Range (Length × Diameter) |
6000mm × φ10-120mm 6000mm × □10-120mm 20 ≤ Rectangular tube side length ≤ 100mm |
| Profile Machining Range | 1. GB Channel steel 6.3# (63X40mm) 2. GB Equal angle steel 40X40mm - 120X120mm 3. GB I-beam 8# (80X50mm) - 12# (120X120mm) 4. GB H-beam HW100X100mm - 100X100mm |
| X, Y-axis Positioning Accuracy | ≤ 0.05mm/1000mm |
| X, Y-axis Repeat Positioning Accuracy | ≤ 0.05mm |
| X, Y-axis Single-axis Max Positioning Speed | ≥ 60m/min |
| Loading Length | ≤ 6000mm |
| Unloading Length | 0 - 1500mm |
| Tailing Length | ≥ 0mm |
| Maximum Material Weight | 100kg |
| Total Power Supply Protection Level | ≥ IP54 |
| Gas Source (Oxygen) | ≥ 1.5MPa |
| Gas Source (Compressed Air) | ≥ 1.5MPa |
| Tube Diameter Range | Round: 10-120mm Square: 20-120mm |
| Power Requirement | 380V 50Hz |
FLOOR PLAN
Technical Highlights
Zero Tail Material with Intelligent Chuck Avoidance
The dual-chuck system enables coordinated reverse cutting with integrated chuck avoidance, achieving near zero tail material. This significantly improves material utilization and reduces waste.
Semi-Automatic Loading System
Equipped with a dedicated semi-automatic loading system for AT series tube laser cutting machines (loading length ≤ 6500 mm).
Featuring a follow-up support and unloading structure with a simplified design, ensuring high precision, low failure rate, easy operation, and excellent overall rigidity.
Comprehensive Services
Pre-Sales Planning
Providing professional capacity assessments, factory workflow planning, and sample testing to ensure the equipment perfectly matches your processing requirements.
In-Sales Training
Handling on-site equipment installation and commissioning, along with comprehensive training on machine operation and software layout, enabling your operators to get up to speed quickly.
After-Sales Maintenance
Offering real-time online troubleshooting, original spare parts supply, and regular routine maintenance to guarantee the long-term, stable operation of your equipment.
FAQ
Q1 What is the maximum tube length for the semi-automatic loading system?
The AT series is equipped with a dedicated semi-automatic loading system capable of handling loading lengths up to ≤ 6500 mm.
Q2 How does the machine achieve "Zero Tail Material"?
Our intelligent dual-chuck system enables coordinated reverse cutting with integrated chuck avoidance. This allows the laser head to cut extremely close to the chucks, resulting in near-zero tail material and minimizing material waste.
Q3 What shapes of tubes can the machine cut?
The machine is equipped with high-precision dual pneumatic chucks, providing full compatibility with various shapes (round, square, rectangular, and various special-shaped tubes) and different thicknesses of metal tubes.
